Use Visual Studio Code Remote to edit files on servers

Editing files on a remote server using the Visual Studio Code Remote extension is that easy.

If you find yourself ever configuring a service on a server you probably had to edit files directly via the terminal using nano, vim, emacs or some other text based editor.

By no means are those editors bad, but they are also not the easiest to use, at least for most of us. I know some of that vim magic myself and also am capable of exiting it, but sometimes I wish I could just use a good IDE like Visual Studio Code to edit my files on the server.

Install the Visual Studio Code Remote extension

Go to the extension menu in VS Code and search for remote.

Search for "Remote"

Click on Remote - SSH and later install, after the installation click reload. You can also install it by visiting the Visual Studio Marketplace Website and click install.

Remote - SSH Extension Overview

Visual Studio Code Remote should now be installed and you should be able to connect to servers with SSH.

Connect to a server

You might notice a new icon on the bottom left of the VS Code window.

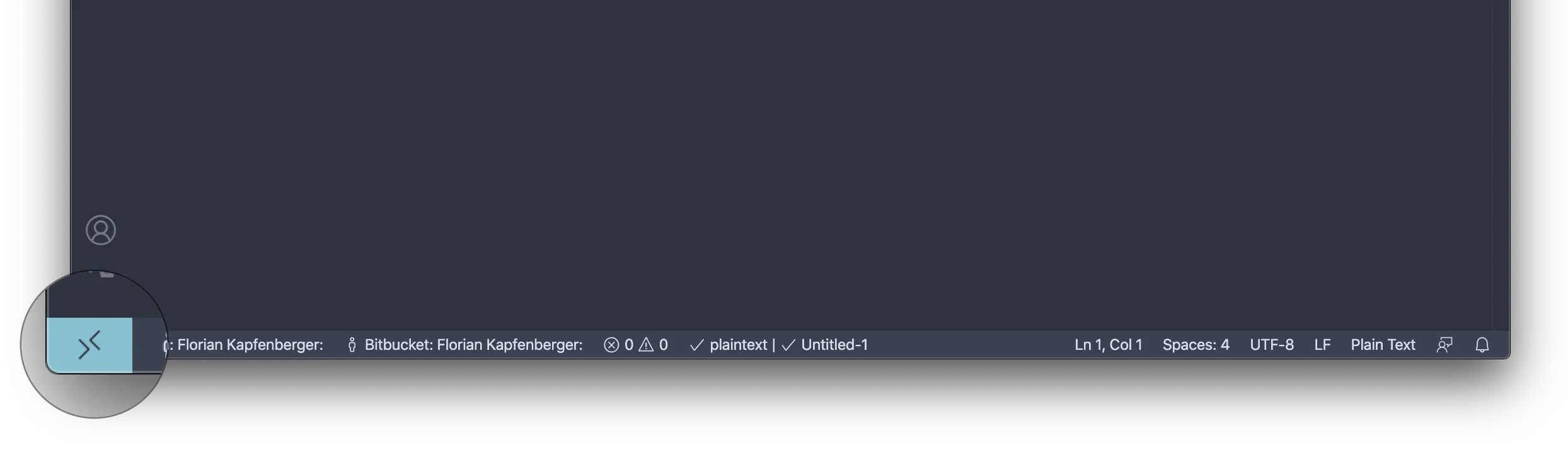

Remote - SSH connection menu

To connect to a server you just have to click it. Next you need to enter which user and server IP or hostname you want to connect to.

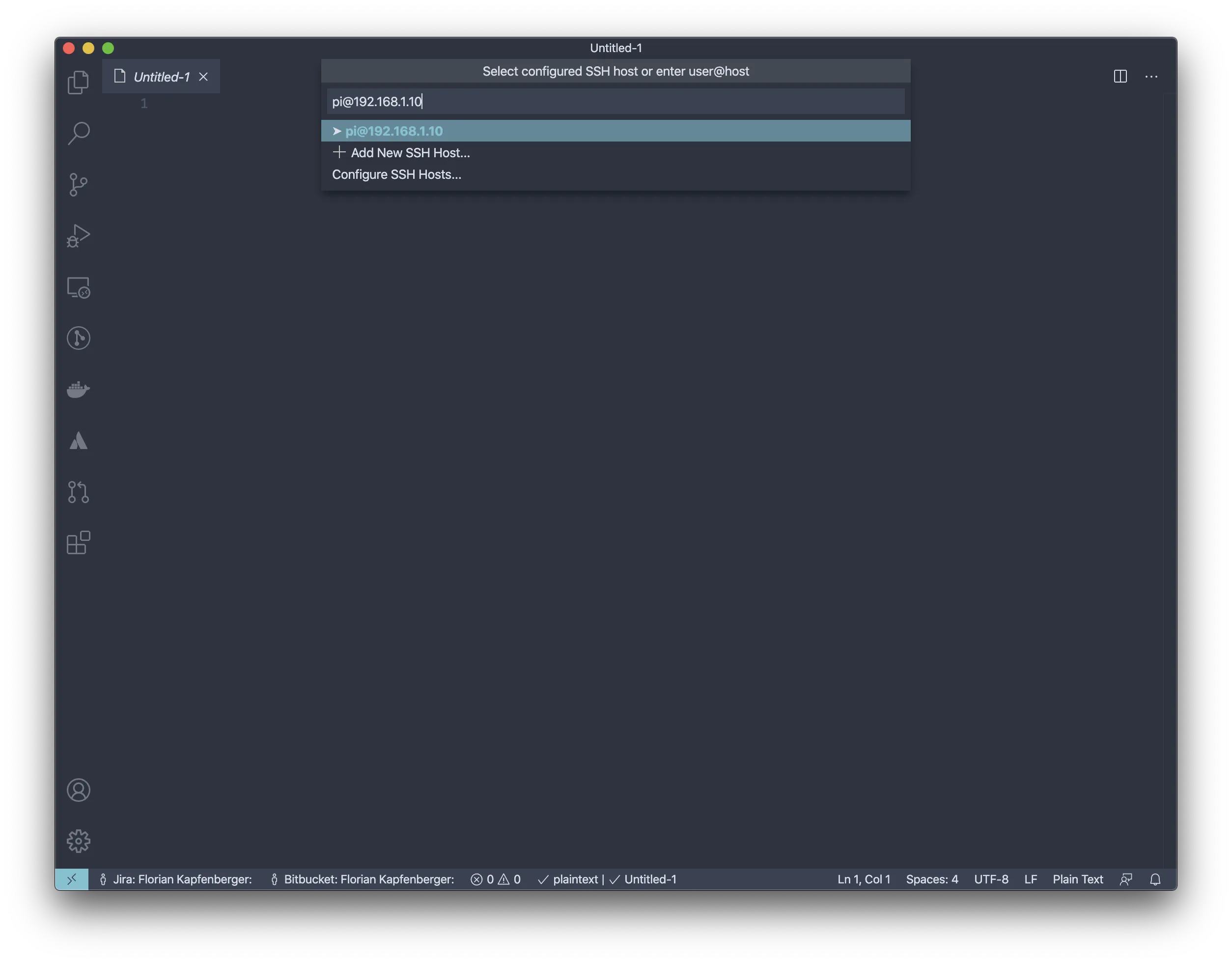

Remote - SSH connection syntax

[user@]hostname is the syntax how you connect to a server using SSH. In my case I am connecting to the server with the user pi.

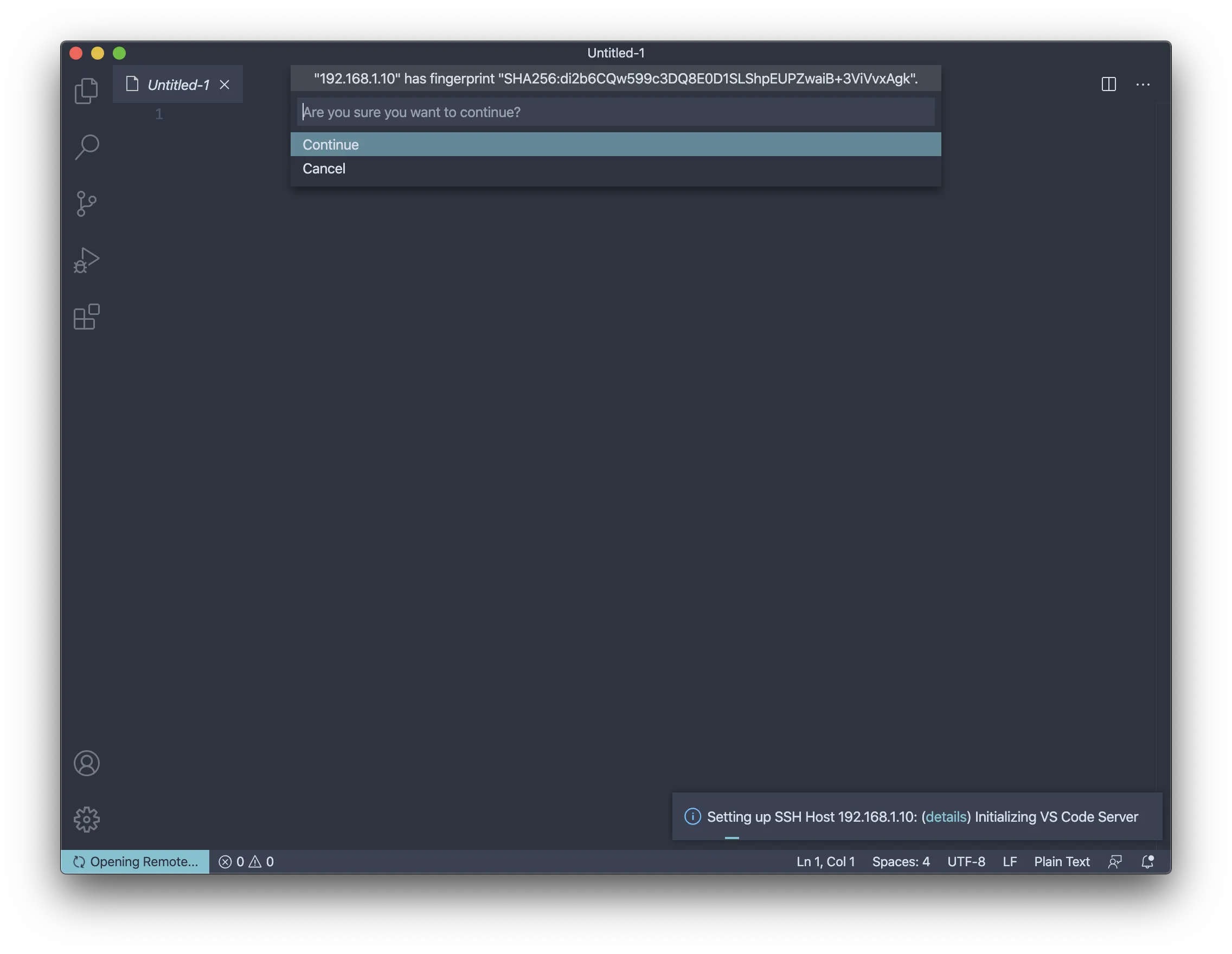

Remote - SSH fingerprint confirmation

The first time you connect to a server it will ask you to confirm the servers fingerprint. This is a security measure from SSH to be safe for future connections that the server will always be the same and was not compromised.

If for any reason you get an error saying the fingerprint does not match with the one saved on the computer, your server might have been altered. This might also happen if you connect to a server with the same private IP address (RFC 1918), but in a different network. If it is the later and you are sure no one messed with your server, you can ignore the warning and update the fingerprint with the following command:

ssh-keygen -R IP

After the fingerprint confirmation VS Code Remote will ask you to put in the password for the specified user.

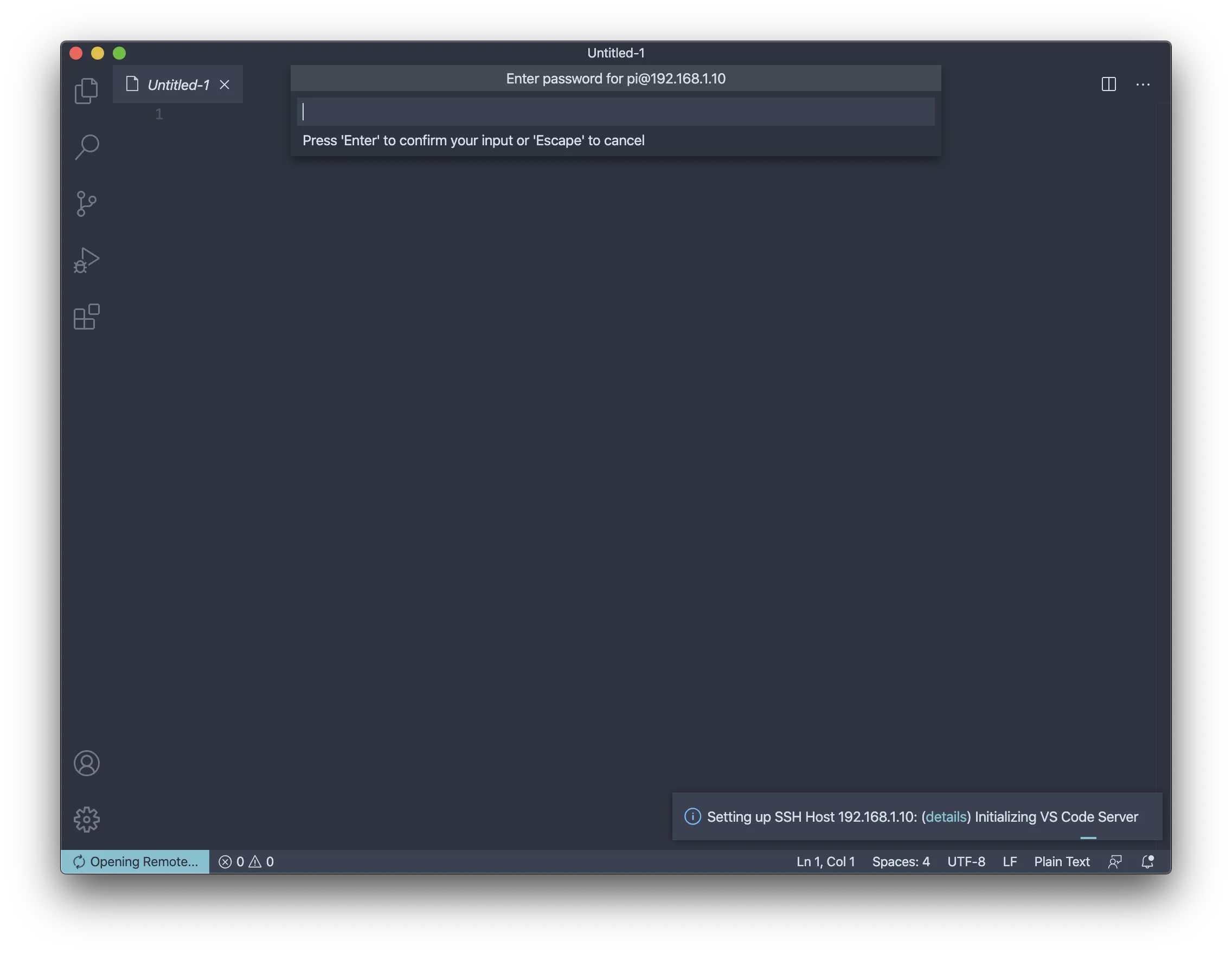

Remote - SSH password input

Entering the password each login is cumbersome, so later in this post I will show you how you can skip this step using SSH Public Key authentication.

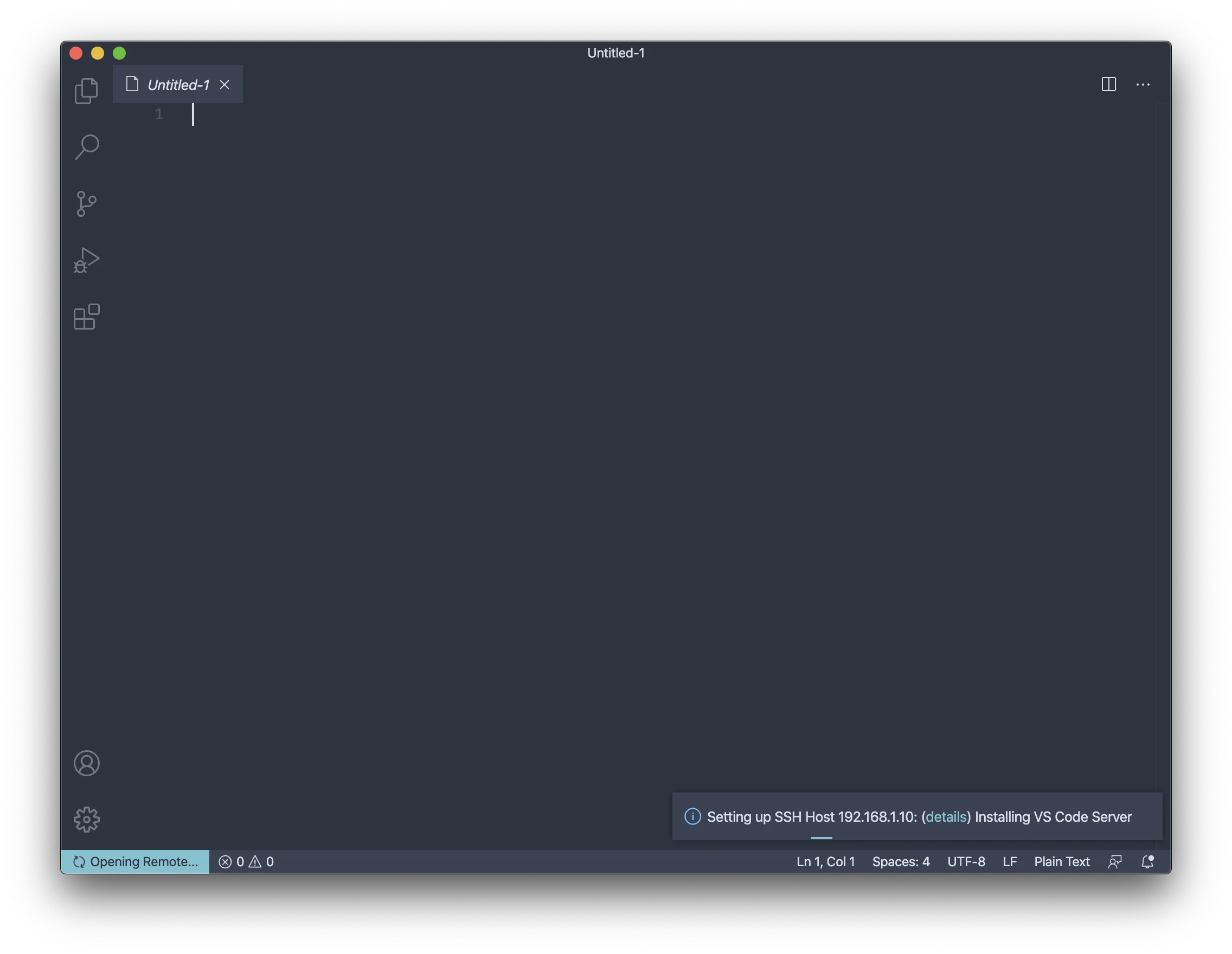

Remote - SSH VS Code Server installation

After a successful login, VS Code Remote will start installing Visual Studio Server on the remote server which might take a while.

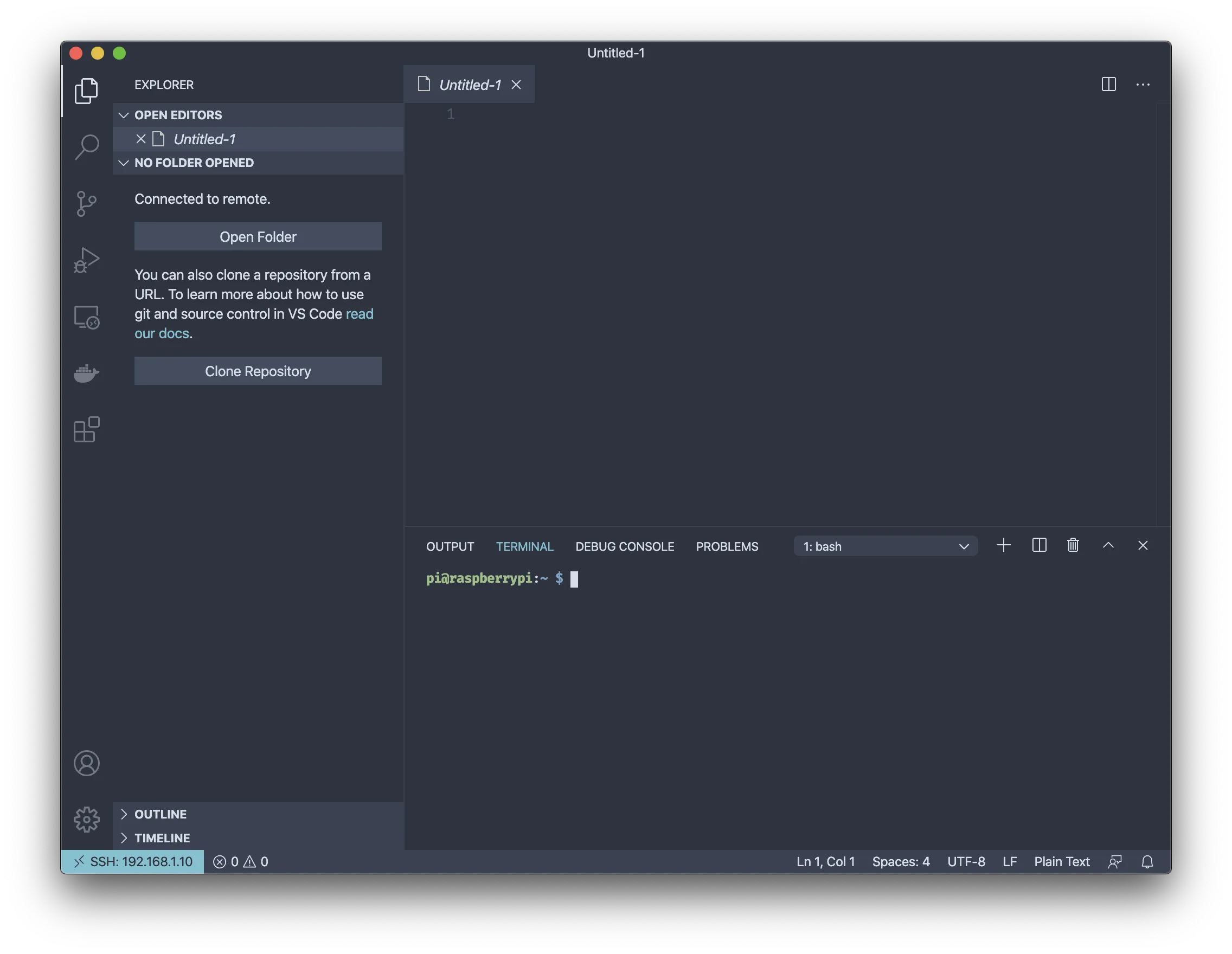

Remote - SSH successful connection

If everything went fine you should now be connected to your server. You can start opening files right from VS Code and use the integrated terminal to enter commands!

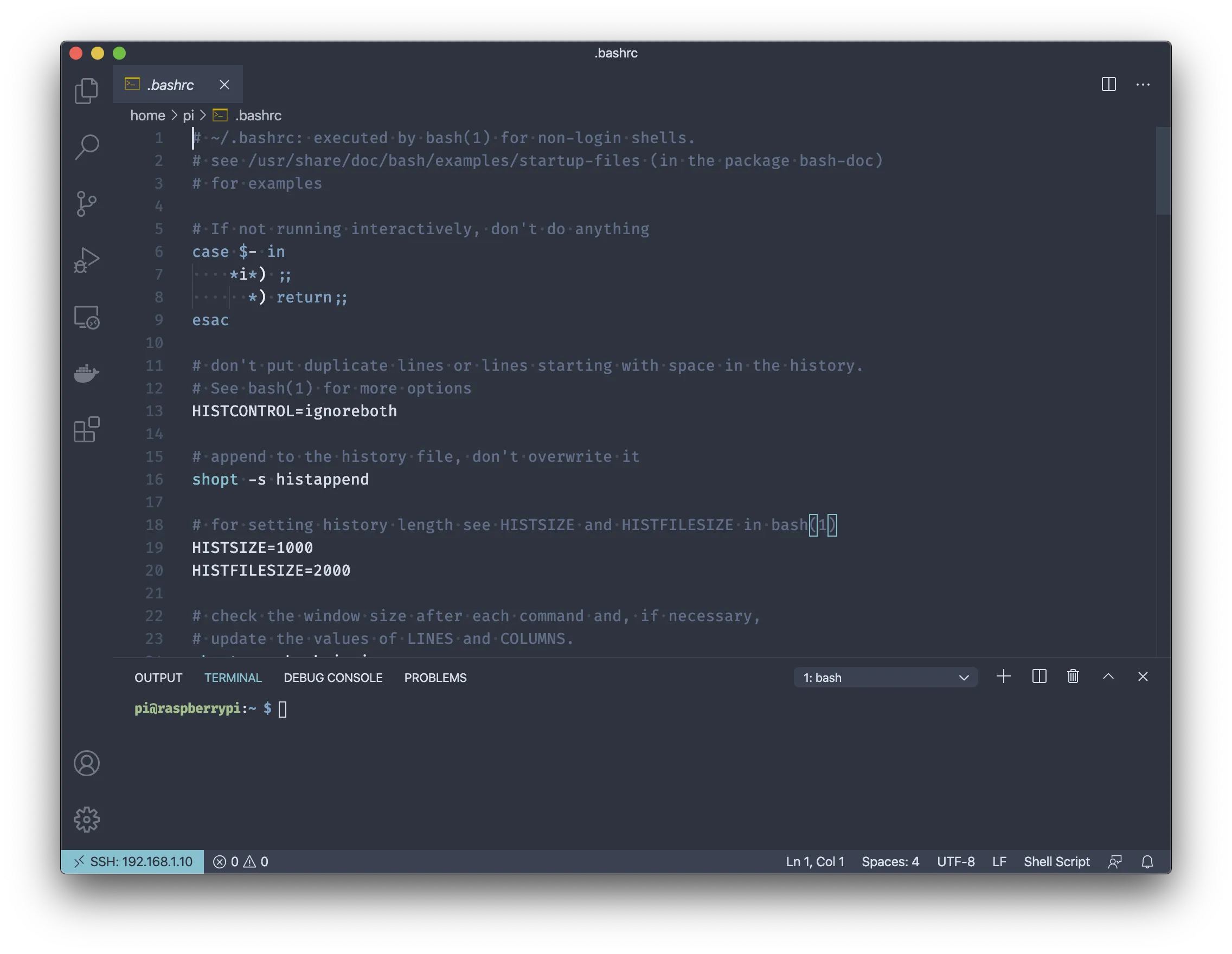

Remote - SSH editing a file on the server using VS Code Remote

Developing on a remote server with Visual Studio Code

The inspiration for this blog post came actually while developing a small Node.js application that needs access to the hardware GPIOs on the Raspberry Pi.

I was not satisfied using vim or copy the files over to the server over and over again.

Visual Studio Code Remote was the perfect solution for my problem. I already love to develop in VS Code and now I can develop on the Raspberry Pi without sitting in front of it or moving files!

One thing you might notice when you start developing on a remote server with VS Code is that you won’t have all your extensions available.

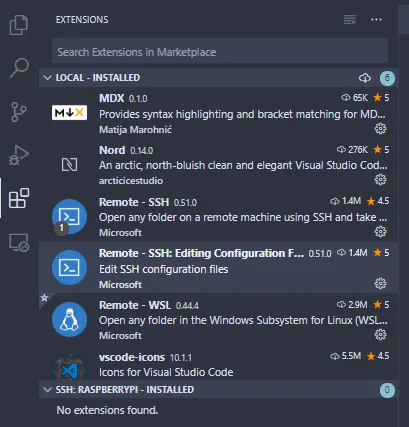

Remote - SSH missing remote extensions

This is because you have to install them on the remote server too. So if you want to use eslint you have to install the extension on the server using VS Code. It is not complicated, but an extra step to think about.

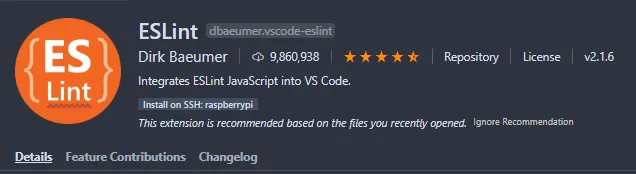

Remote - SSH missing remote extension installation

Skip passwords with public key authentication

This is a optional step and not really mandatory to do

Public key authentication is a secure way to connect to a server with SSH using a set of key pairs. The public key is saved on the server and the private key should be kept on your local machine. This is the key to unlock the server and must never be leaked or shared with someone else.

If you are using Windows you must have Git for Windows installed and use the following commands inside the Git Bash.

The following commands should be the same for Windows and macOS except you might have to end the commands on Windows with .exe.

Generating SSH Key

If you already have an SSH key that you might already use with git you can skip this step.

ssh-keygen -b 4096

Which results in the following output.

Generating public/private rsa key pair.
Enter file in which to save the key (/c/Users/flori/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /c/Users/flori/.ssh/id_rsa.
Your public key has been saved in /c/Users/flori/.ssh/
The key fingerprint is:
SHA256:xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx flori@Windows

You can set a passphrase for the key if you want, but than you have to enter a password for the login which we want to avoid.

Copy the public key to the server

You can either manually paste the key to the server or you can use a program called ssh-copy-id which I prefer.

On macOS you have to install ssh-copy-id using brew on Windows it should be already present in the Git Bash.

brew install ssh-copy-id

To copy the key to the server you just have to login to the server using the ssh-copy-id utility.

ssh-copy-id [email protected]
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/c/Users/flori/.ssh/"
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
[email protected]'s password:
Permission denied, please try again.
[email protected]'s password:

Number of key(s) added: 1

Now try logging into the machine, with:   "ssh '[email protected]'"
and check to make sure that only the key(s) you wanted were added.

Verifying the public key authentication

Now if you try to login with ssh you should not be asked for a password. VS Code should now also work with the public key authentication.

If you are still asked for a password, check if you are using the correct ssh configuration. Also check if the permissions on the authorized_keys file on the server are correct:

ls -l ~/.ssh
drwx------ 2 pi pi 4096 Jul  9 15:56 .
drwxr-xr-x 8 pi pi 4096 Jul  9 13:29 ..
-rw------- 1 pi pi  739 Jul  9 15:56 authorized_keys

If your permissions are different you might have to change them:

chmod 700 ~/.ssh
chmod 600 ~/.ssh/authorized_keys


Visual Studio Code Remote is a great extension that allowed me to programm on a remote server without changing my way to develop.

In the future when I have to configure multiple files on a remote server I will probably use Visual Studio Code.

For simple changes or to check something quickly I probably will still use a terminal based editor.
